Teian Eurorack 15pin busboard+power system

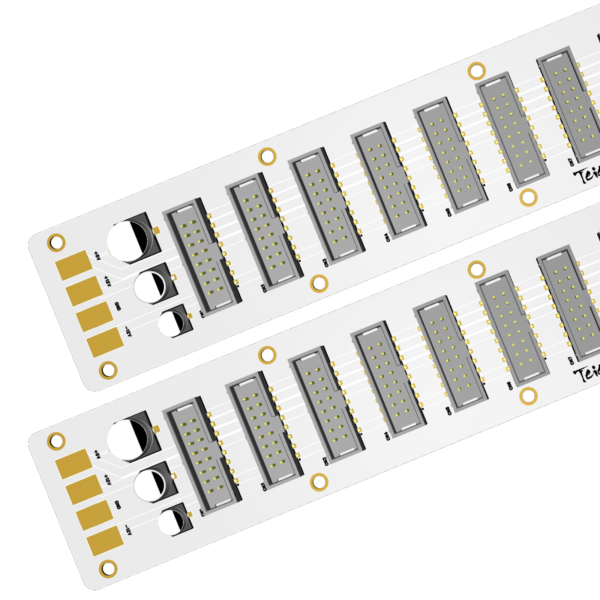

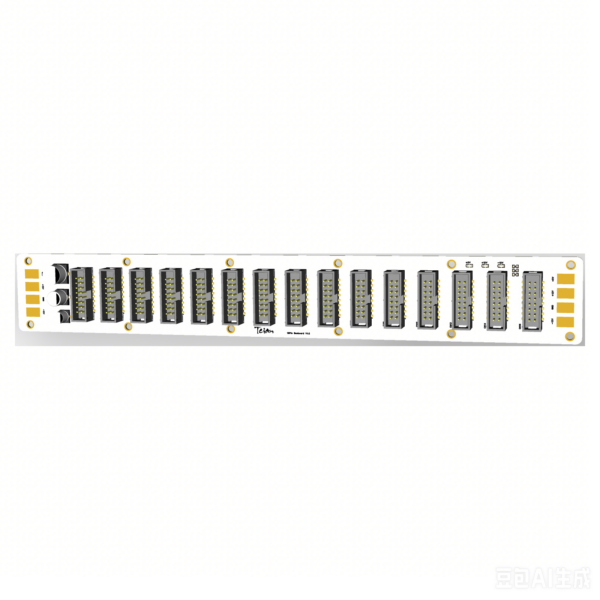

The Teian 15-pin Eurorack busboard features an all-SMD design, which minimizes the amount of vertical space occupied within the case. You can mount the busboard inside the chassis using double-sided tape. Each voltage rail is accompanied by filtering capacitors and corresponding status LEDs for clear visual indication. The power board requires soldering for external connections or for linking to other power boards.

Teian 15-Pin Eurorack Busboard – Specifications

General Specifications

• Product Name: Teian 15-Pin Eurorack Busboard

• PCB Design: Full SMD (surface-mount device) design

• Mounting Holes: 12 × M3 screw holes (corner layout)

• Voltage Rails: Multiple voltage rails (supports standard Eurorack voltages: +12V / -12V / +5V)

• Filtering: Each voltage rail equipped with filtering capacitors

• Status Indication: Independent LED indicator for each voltage rail

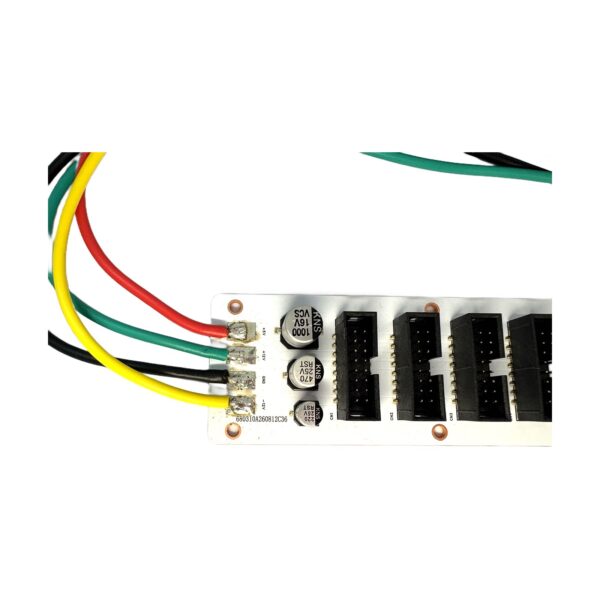

• Connection Method: Requires soldering for external connections or linking to sub-power boards

• Interface Type: 15-pin header connector (compatible with standard Eurorack bus systems)

• Application: Power distribution system for Eurorack modular synthesizers

Environmental Specifications

• Operating Temperature: 0°C to +50°C

• Storage Temperature: -20°C to +70°C

• Humidity: 10% – 90% RH (non-condensing)

Mechanical Specifications

• Dimensions: width 29.5cm × depth 1.1cm × height 4.2cm

• PCB Thickness: 1.6 mm (standard)

• PCB Design: Full SMD (no through-hole components on top side for low profile)

• Mounting: 12 × M3 screw holes or double-sided tape

• Grounding: Chassis ground connection

• Connector Type: 16-pin header (compatible with standard Eurorack bus cables)

• Connection: Wire soldering required

Optional Accessories

Through this page, you can select and purchase the accessories for your power system. In addition to the 15-pin busboard, we also offer:

• WirePack: Red + Green + Black + Yellow wires, 50cm, 1.5mm² copper wire

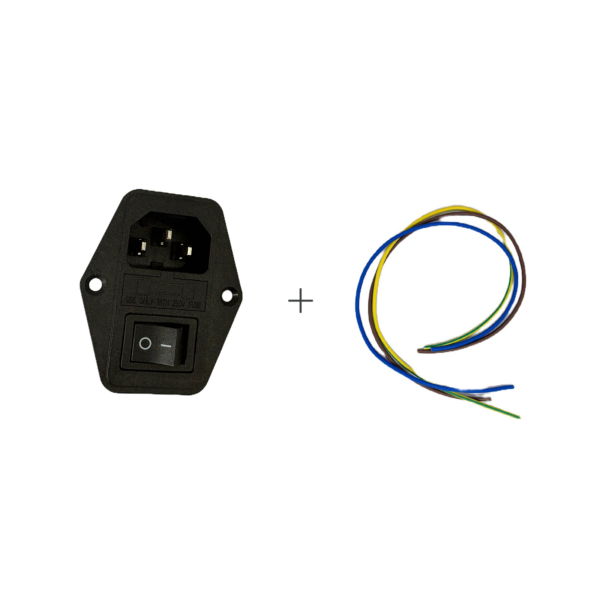

• SocketPack: Fused solderless 3-pin switch + Blue + Brown + Yellow-Green wires, 50cm (Blue/Brown), Yellow-Green 2.0mm² copper wire

• Power Supply: Mornsun LM75 switching power supply module

Options on the page：

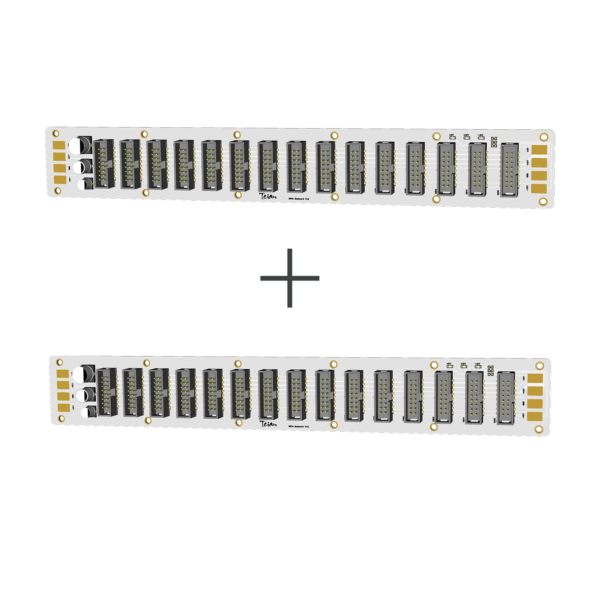

1xBusboard Wire set = 1xBusboard+1xWirePack

2xBusboard Wire set = 2xBusboards+2xWirePacks

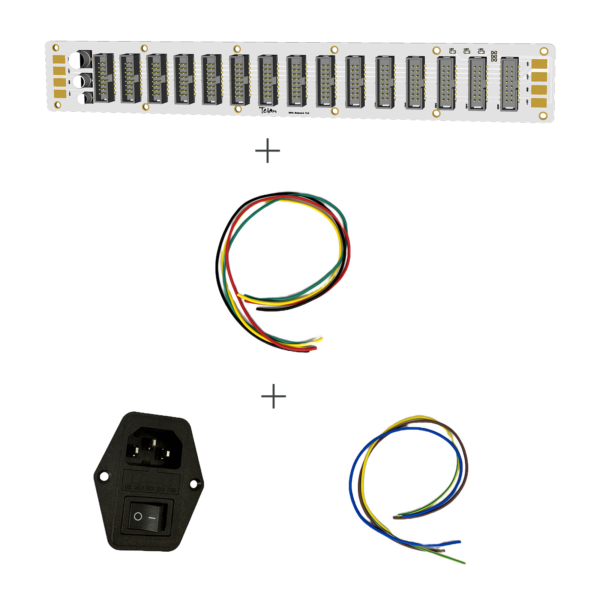

1xBusboard WS set = 1xBusboard +1xWirePack+1xSocketPack

2xBusboard WS set = 2xBusboard +2xWirePack +1xSocketPack

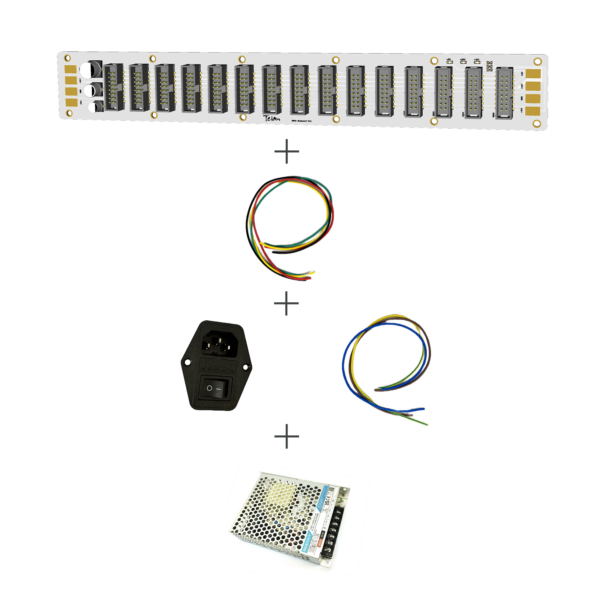

1xBusboard WSP set = 1xBusboard +1xWirePack +1xSocketPack +1xMornsunLM75

2xBusboard WSP set = 2xBusboard +2xWirePack +1xSocketPack +1xMornsunLM75
